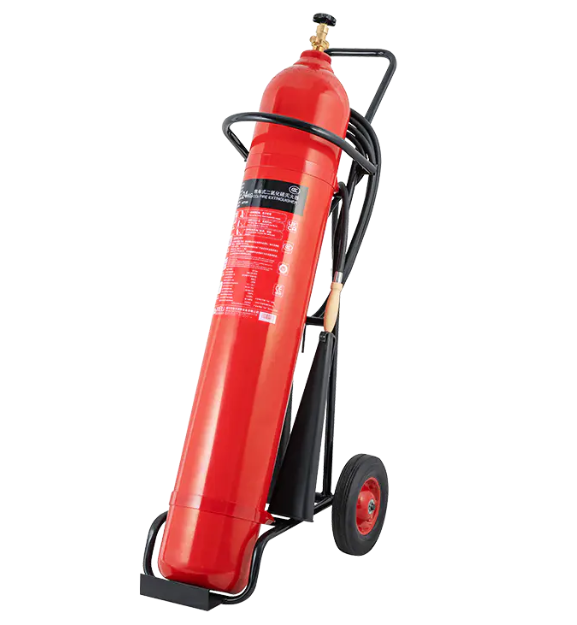

How is the discharge nozzle on a trolley-type CO₂ fire extinguisher designed to direct the flow of CO₂ effectively?

The nozzle’s design is key to delivering the CO₂ effectively at the site of the fire. Typically, the nozzle has a narrow, tapered opening that helps concentrate the flow of CO₂ into a focused stream. This design minimizes dispersal and ensures that the CO₂ is directed precisely at the base of the fire. By targeting the source of the flames, the nozzle enhances the fire-extinguishing power of the CO₂, efficiently displacing oxygen and starving the fire of the fuel it needs to continue burning. A focused nozzle helps maximize the impact of CO₂ on the fire, especially in critical areas like electrical fires, where precision is essential to prevent additional hazards.

In certain trolley-type CO₂ extinguishers, the nozzle may be adjustable, giving the operator the ability to control the direction of the CO₂ discharge for better flexibility during firefighting. The adjustable nozzle ensures that the CO₂ stream can be aimed at different fire intensities or hard-to-reach areas, enhancing coverage in challenging fire situations. On the other hand, fixed nozzles are designed for ease of use, where the operator can focus on simply moving the extinguisher into position. Regardless of whether the nozzle is adjustable or fixed, the core purpose remains the same: to direct the CO₂ flow efficiently and accurately to suppress the fire.

The nozzle is constructed from heat-resistant and durable materials, such as brass, stainless steel, or aluminum, to withstand the stresses encountered during operation. The discharge of CO₂ at high pressure creates a rapid temperature drop, reaching extremely low levels as the gas expands. This cold discharge can cause damage to materials and equipment if not properly controlled. Therefore, the nozzle is designed to endure the thermal shock while maintaining its integrity throughout the extinguishing process. The material also ensures that the nozzle does not suffer from corrosion or wear, even after repeated use in challenging environments.

When CO₂ is discharged from the fire extinguisher, it rapidly expands, creating an extremely low-temperature gas plume. The nozzle design helps to control and direct this cold gas, reducing the risk of potential damage to nearby surfaces or injury to personnel. The long, narrow design of the nozzle helps to confine the cold plume to the area directly in front of the nozzle, ensuring that the gas is effectively targeted at the fire without dispersing too widely. The nozzle’s ability to control the direction of the CO₂ flow also prevents excessive freezing of nearby materials and minimizes the risk of collateral damage during use.

The ergonomics of the nozzle are designed to enhance the safety and comfort of the operator during use. The nozzle is often equipped with a longer handle that enables users to maintain a safe distance from the fire. This feature is especially important in preventing frostbite or cold burns that could occur from the extreme cold of the CO₂ discharge. The nozzle’s handle design is often lightweight and easy to grip, allowing the operator to maneuver the fire extinguisher in confined spaces or difficult-to-reach areas with greater ease. These ergonomic features are critical in ensuring that the operator can control the discharge of CO₂ without unnecessary strain or risk of injury.
